The standard effective cutting length of the equipment is 13m (single station) and 26m (double station), which can also be customized according to customer needs;

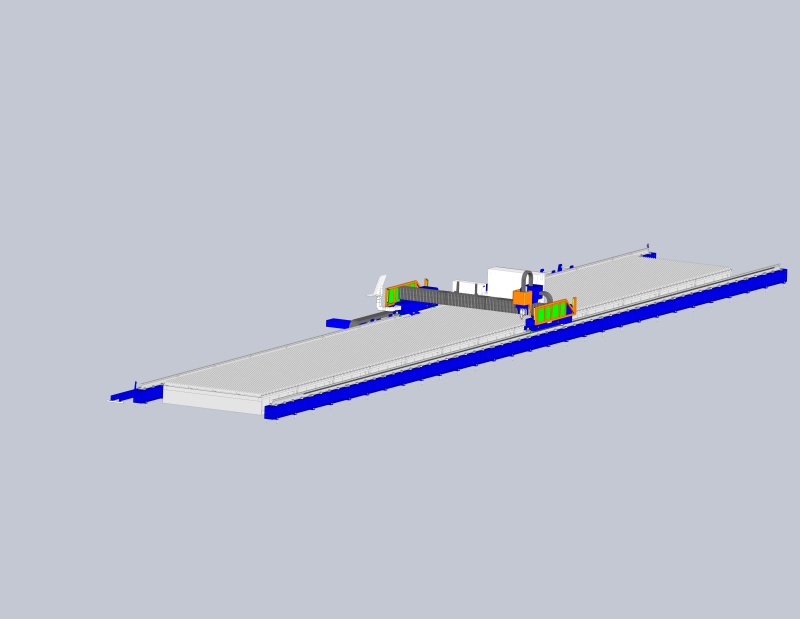

It adopts a floor-standing gantry structure, suitable for precision cutting of large-format plates, super long and wide, handy;High- strength beam to ensure processing accuracy and processing efficiency;
Suitable for laser cutting of medium and thick plates, energy saving, environmental protection, and low operating cost;
The use of internationally renowned brand laser generators, the perfect combination of international brand digital control and drive systems and the most optimized cutting parameter library, doubles the processing efficiency;
The industrialized design of the equipment shape enhances the corporate image.
| Equipment Model | YT-LC4000M/4500M/5000M/6000M/7000M | ||
| Maximum positioning speed of the x/y axes |
60m/min |
Laser power |
6000W-200000W |
| Maximum acceleration on the x/y axes |
0.6G |
Laser brand | MAX photonics/Raycus |
| Positioning accuracy |
±0.05mm |
Drive method | High-precision servo motors and gearboxes |
| Repeatability accuracy |
±0.03mm |
Transmission method | High-precision linear guides and helical gears |
| Operating voltage | 380v±5% 50Hz | Processing Range | Customisable |
