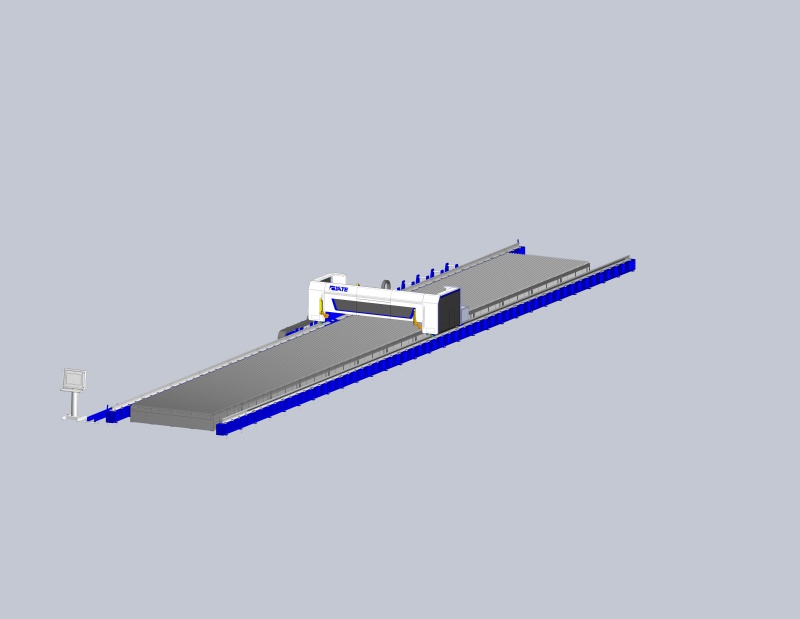

The standard effective cutting length of the equipment is 13m(single station)and 26m(double station), which can also be customized according to customer needs;
It adopts a floor-standing gantry structure, suitable for precision cutting of large-format plates, super long and wide handy;
High-strength beam to ensure processing accuracy and processing efficiency
Suitable for laser cutting of medium and thick plates energy saving, environmental protection and low operating cost;
The use of internationally renowned brand laser generators, the perfect combination of international brand digital control and drive systems and the most optimized cutting
The industrialized design of the equipment shape enhances the corporate image
| Equipment Model | YT-LC4000M/4500M/5000M/6000M/7000M | ||
| Maximum positioning speed of the x/y axes |
60m/min |
Laser power |
6000W-200000W |
| Maximum acceleration on the x/y axes |
0.6G |
Laser brand | MAX photonics/Raycus |
| Positioning accuracy |
±0.05mm |
Drive method | High-precision servo motors and gearboxes |
| Repeatability accuracy |
±0.03mm |
Transmission method | High-precision linear guides and helical gears |
| Operating voltage | 380v±5% 50Hz | Processing Range | Customisable |
