The standard effective cutting length of the equipment is 13m (single station) and 26m (double station), which can also be customized according to customer needs;

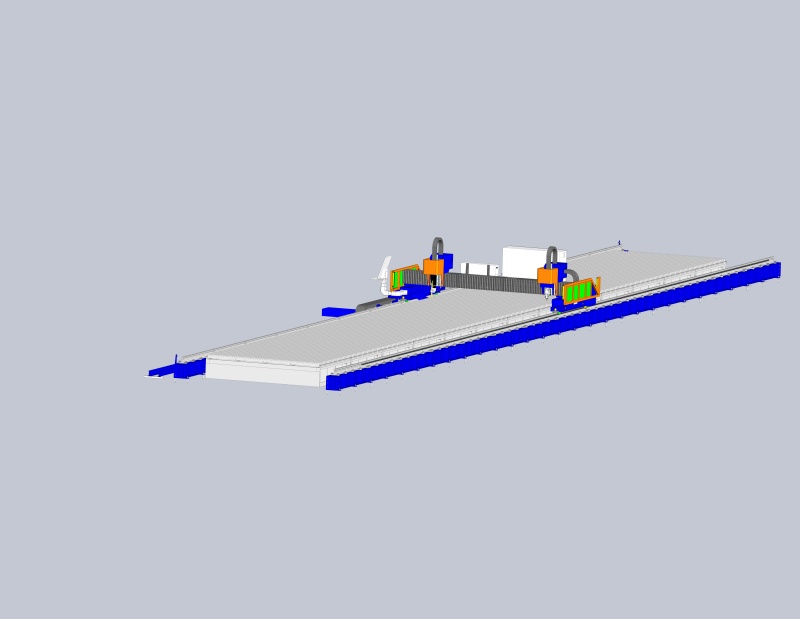

It adopts a floor-standing gantry structure, suitable for precision cutting of large-format plates, super long and wide, handy; Equipped with flame cutting and laser cutting functions, one machine meets the user's requirements for cutting thick plates as well
as medium and thin plates;
Flame cutting for thick plates offers low cost and high quality.Laser cutting for medium and thin plates delivers higher efficiency.
High-strength beams ensure processing accuracy and efficiency.
| Equipment Model | YT-LC4000M/4500M/5000M/6000M | ||
| Maximum positioning speed of the x/y axes |
60m/min |
Laser power |
6000W-200000W |
| Maximum acceleration on the x/y axes |
0.6G |
Laser brand | MAX photonics/Raycus |
| Positioning accuracy |
±0.05mm |
Drive method | High-precision servo motors and gearboxes |
| Repeatability accuracy |
±0.03mm |
Transmission method | High-precision linear guides and helical gears |
| Flame cutting thickness (piercing) | 80mm | Flame cutting thickness (edge) | 150mm |
