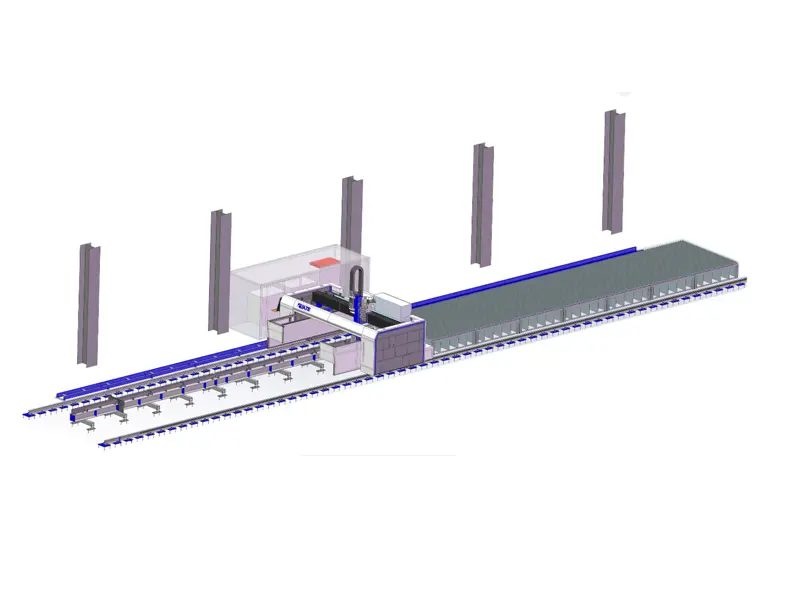

3D five-axis control, specialized in cutting H-shaped steel;
Adopting gantry structure, without chuck, to ensure long-term running accuracy;
Main functions: cutting H-beam steel, drilling holes, cutting through welding holes, marking and drawing lines, beveling flanges;
Expanded functions: cutting flat plates directly, cutting flat plates bevels, cutting round pipes, etc. Multiple processes combined into one, improving cutting accuracy and production efficiency;
Support double-workstations,can switching between two 12-meter H-beam steel, do not influence between material loading/unloading and cutting ,improving production efficiency.
| Equipment Model | YT-HB 1200(20000W--30000W) | ||
| H-steel effective processing range |
web*flap*Length 1200*600*12000mm |
x/y Axis Positioning Repeatability |
±0.05mm |
| Maximum cutting thickness |
carbon steel: 50mm stainless steel:40mm
|
Maximum synchronous speed of x/y axis | 50m/min |
| Recommendations for batch cutting thickness |
carbon steel: 45mm stainless steel: 35mm |
Maximum acceleration on the x/y axes | 0.6G |
| x/y-axis positioning accuracy |
±0.05mm/m |
Travel distance (axis) |
X/Y/Z （mm） 3000/27000/1000 |
| Operating voltage | 380v±5% 50Hz |
External dimensions （L*W*H） |
30000*4500*2200 mm |
